Self-contained DR & CT-ready platforms with AERB-compliant shielding, high-resolution detectors and multi-axis part handling — installed on your production floor, not in a bunker.
Castings, welds, electronics, composites and assemblies rarely share a geometry. MQX.drIS is built around the part — cabinet volume, manipulator travel and source energy are specified together so the system matches what leaves your line, not a catalogue average.

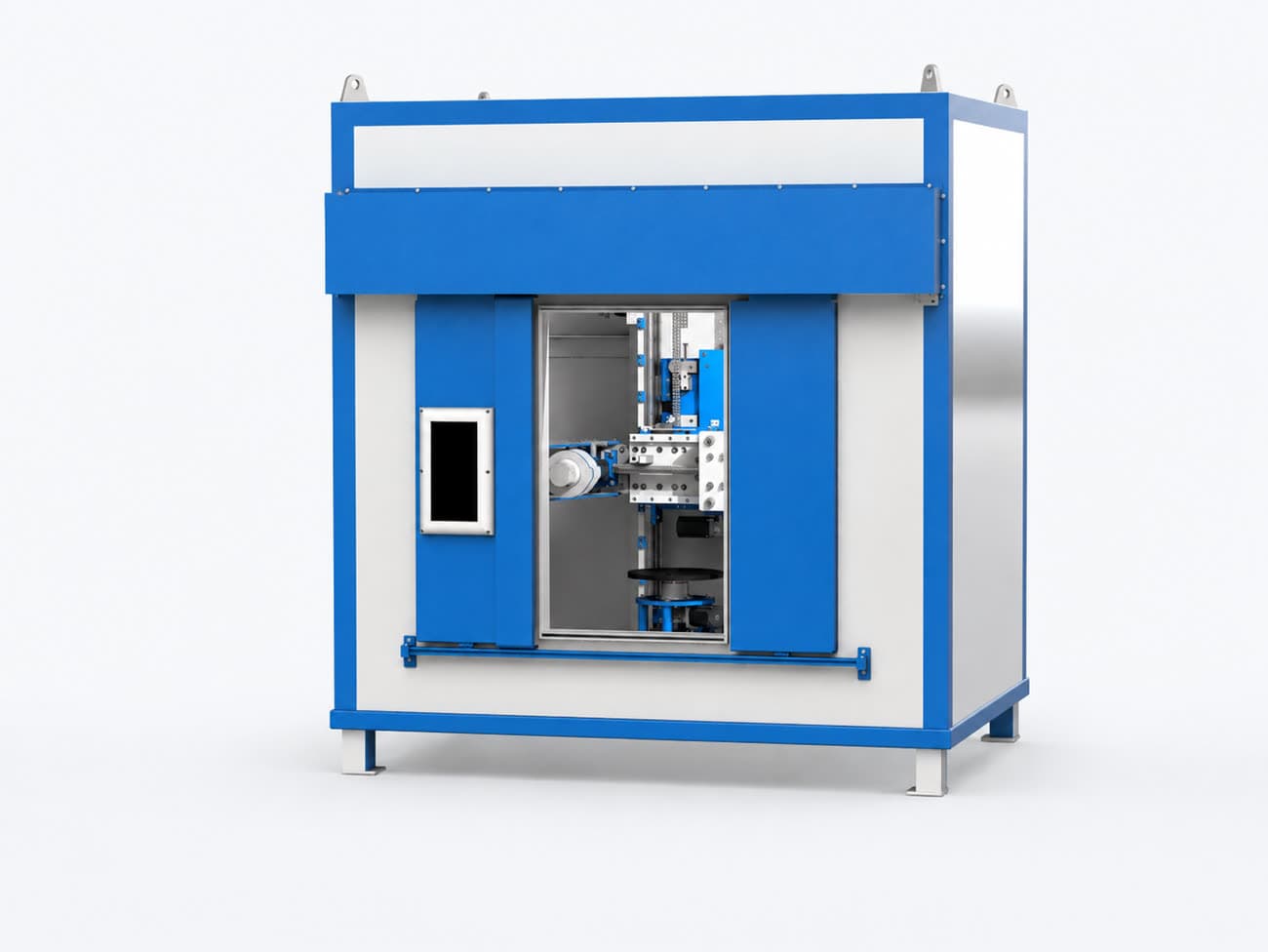

Every model shares one architecture: an AERB-compliant shielded cabinet, interlocked motorised doors, a digital flat-panel detector and the MQS Imaging Suite. You choose the energy and handling envelope; the operating procedure, training and audit trail stay the same across the fleet.
Electronics, light alloys, small castings
PCBs, aluminium, plastics, composites
Automotive castings, sub-assemblies
Aluminium, magnesium, thin steel
Thick steel castings, valve bodies
Steel, ductile iron, bronze
Heavy castings, thick welds, turbine parts
Heavy steel, superalloys, forgings

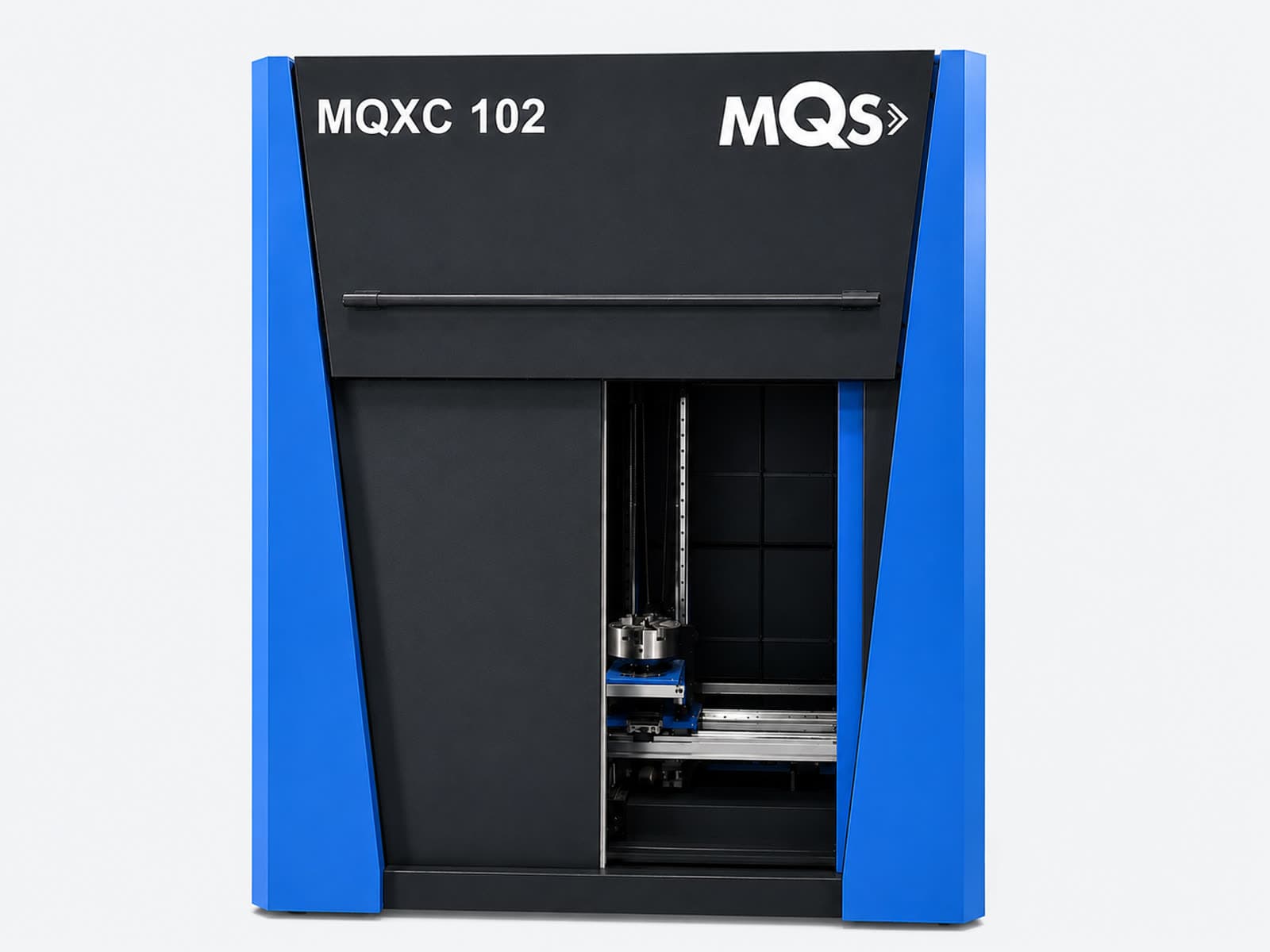

The four models below make up the standard MQX.drIS lineup — all share the same cabinet architecture, imaging suite and safety design, differing only in penetration.
The compact bench-class cabinet. A microfocus source and short source-to-object distance give the geometric magnification needed for solder joints, wire bonds and thin-wall alloy parts.

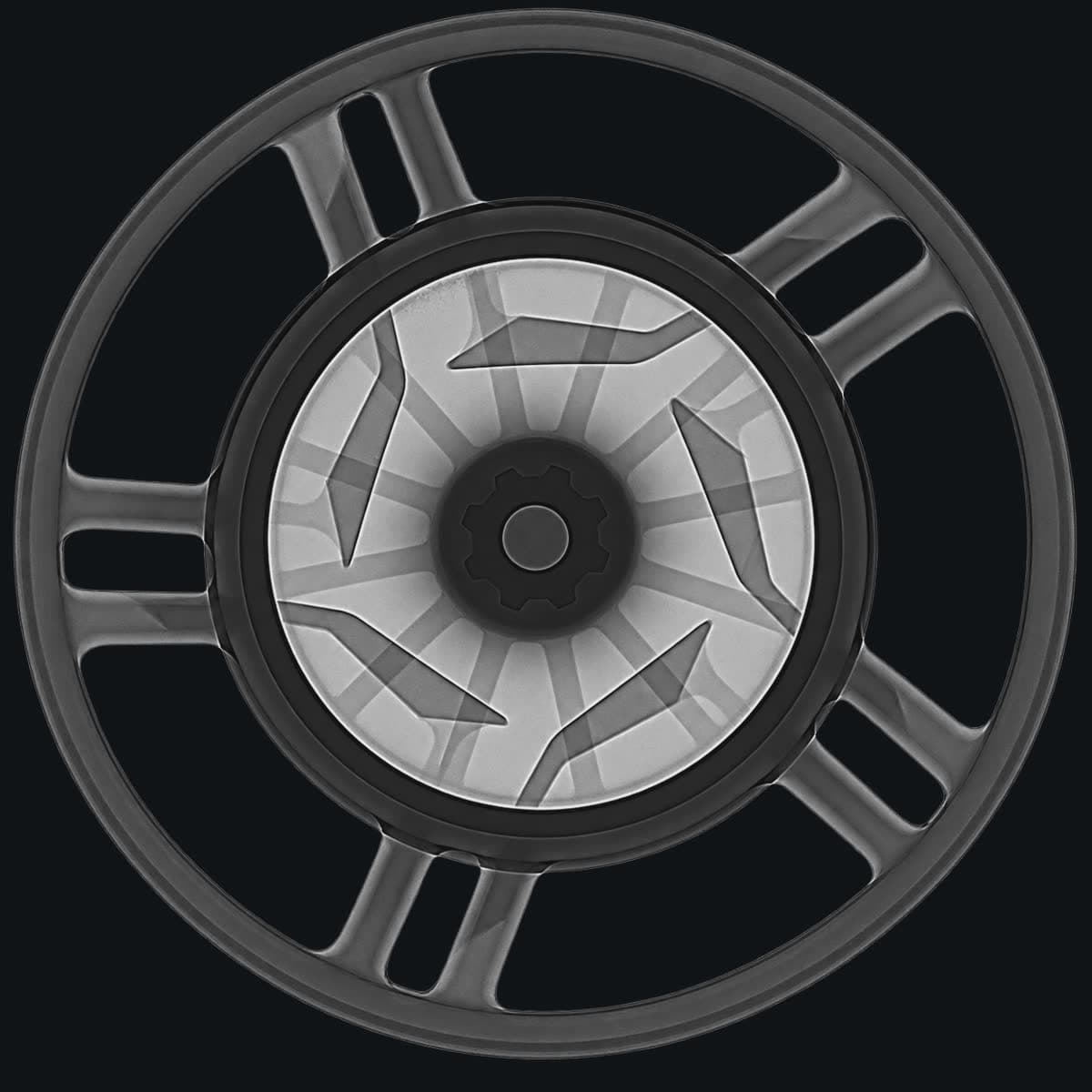

The volume workhorse. Enough energy for production aluminium castings with a manipulator envelope sized for wheels, housings and manifolds, and CT reconstruction on the same platform.
Raised penetration for ferrous work. Suited to valve bodies, pump housings and pressure components where wall thickness defeats a 225 kV source.
The high-energy platform. A 4500 W source with a reinforced cabinet and stage for the heaviest parts that still belong in a cabinet rather than a vault.

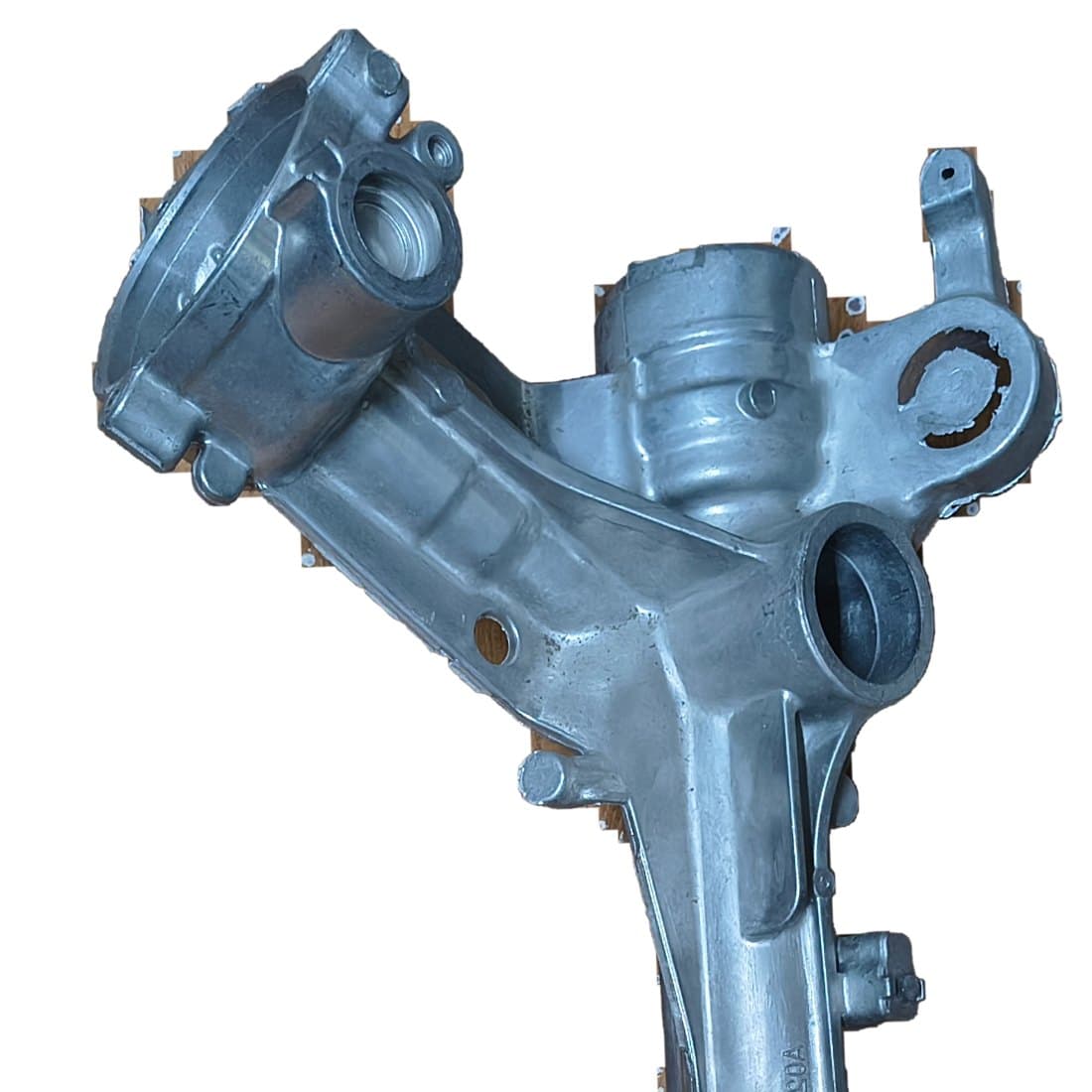

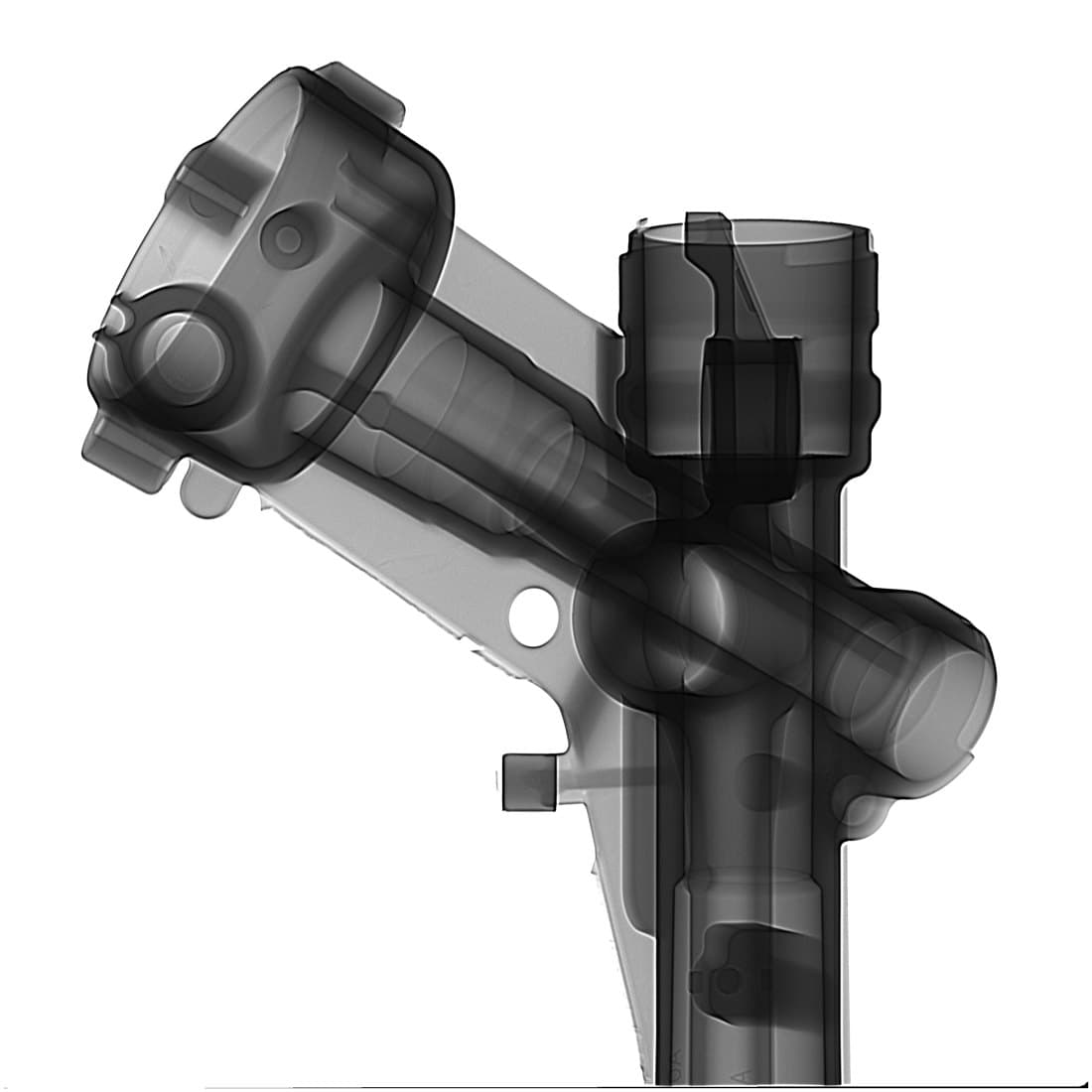

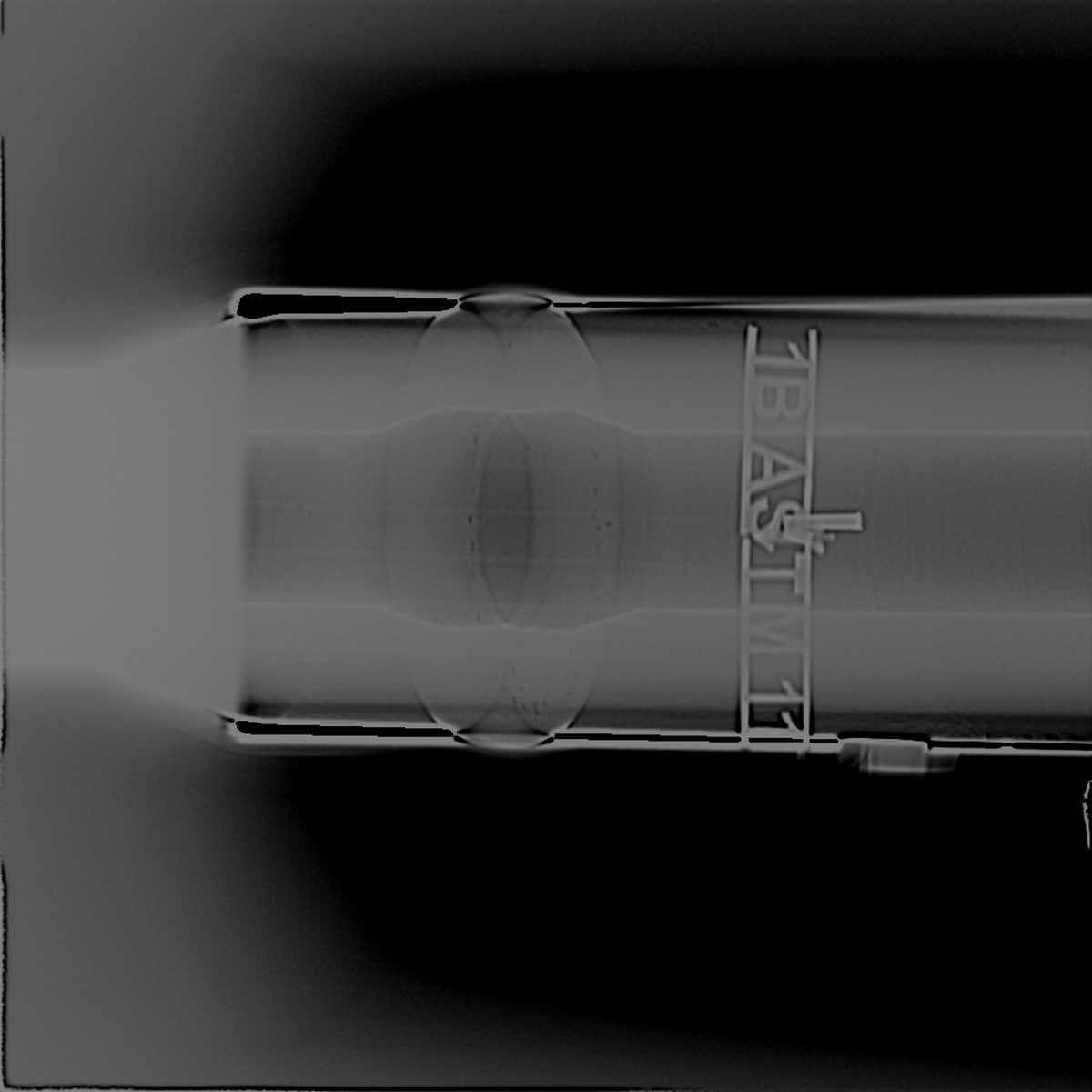

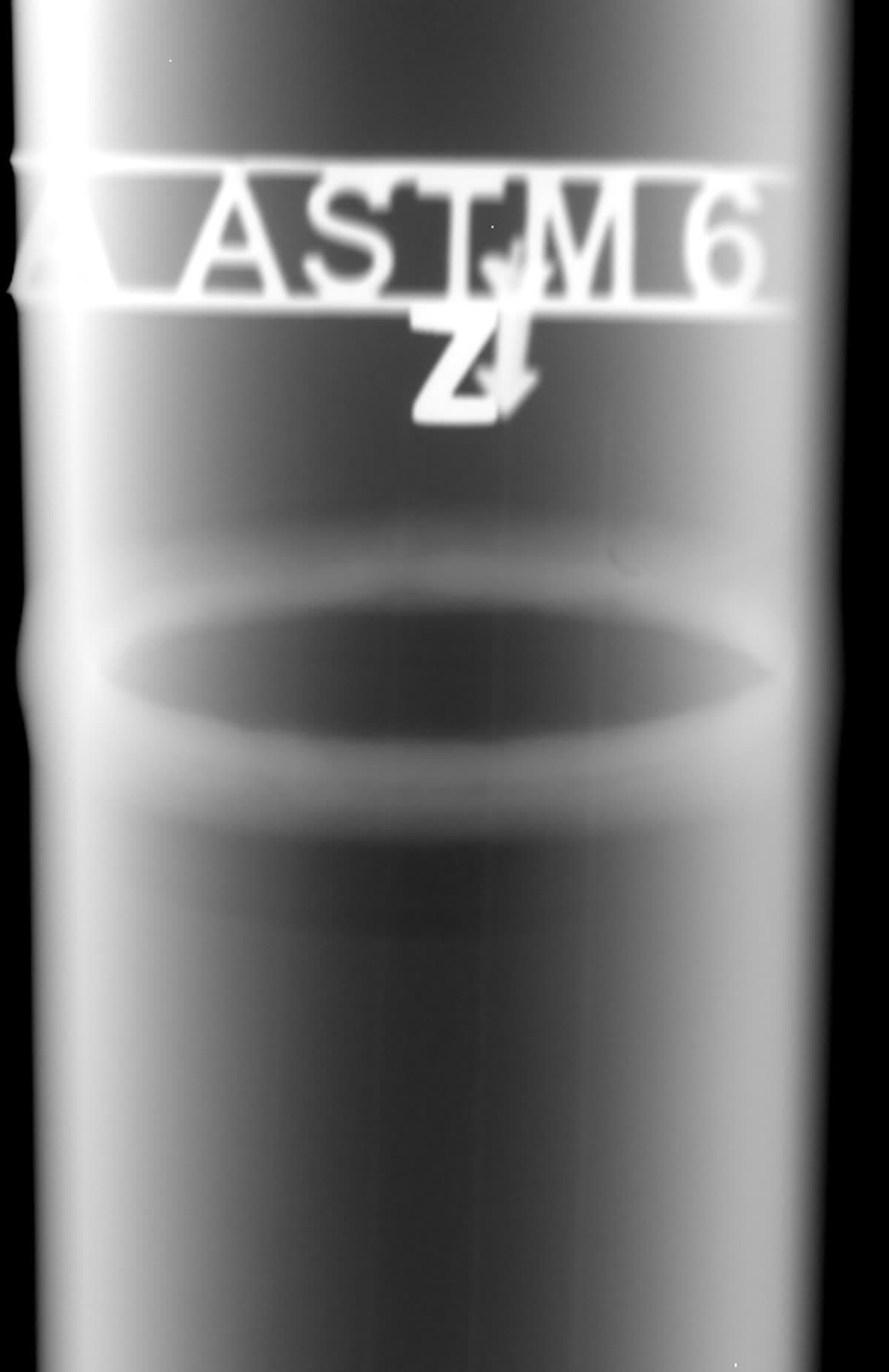

Move the inspection beam across the casting to reveal its internal geometry. MQX.drIS digital radiography exposes hidden voids, wall sections and internal features without damaging the component.
| Axis | Specification |
|---|---|
| Y travel | ≈ 1100 mm |
| Z travel | ≈ 1500 mm |
| X axis | Linear travel with ±45° tilt |
| Rotation | 360° continuous |
| Maximum load | ≤ 100 kg |
| Parameter | Range |
|---|---|
| Pixel pitch | 150 µm / 100 µm / 75 µm |
| Active area | 430 × 430 mm or 300 × 250 mm |
| Frame rate | Up to 30 fps |
| Scintillator | CsI or GOS |
| Parameter | Range |
|---|---|
| Source type | Mini-focus / Microfocus |
| Tube voltage — Mini-focus | Up to 450 kV |
| Tube voltage — Microfocus | Up to 300 kV |
| Tube power | Depends on Source Configuration |
| Focal spot | 0.4 – 5.5 mm |
| Modality | 2D, DR & CT |
Share your part, material and defect type — our engineers will recommend the right MQS system.
